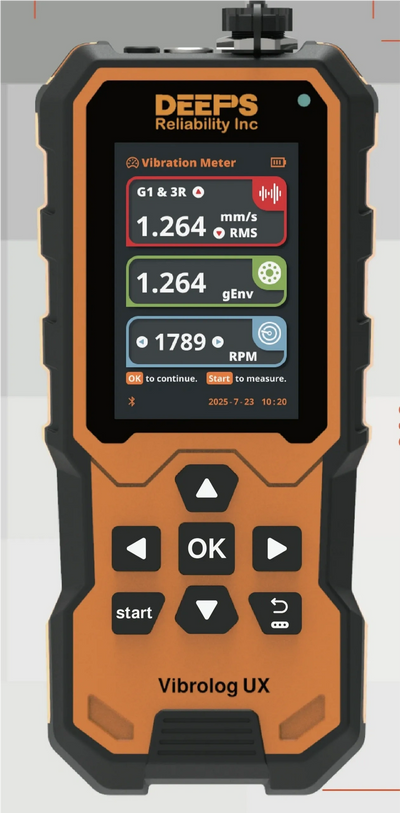

Vibrolog UX –handheld vibration meter /analyzer/data collector
Vibrolog UX is a compact handheld vibration analyzer that combines vibration level measurements, envelope analysis, auto speed detection and band overall diagnostics, in a rugged, field-ready device.
It clearly displays vibration levels across key bands like 1X, 2X, 3X and other, helping users identify imbalance, misalignment, and looseness at a glance — even without expert training.
With envelope analysis technique, bearing defects can be detected and tracked at its early stage of damage.
With a 3.5” high-contrast display, 7-key keypad, rechargable18650 batteries, and Fischer sensor input, Vibrolog UX delivers powerful condition monitoring in the palm of your hand.
Select a model that fits your needs
- Vibration meter: vibration levels and envelope value; levels of 1x, 2x 3x and other for diagnosis purpose.
- Vibration meter +: Vibration meter with data saving and transferring features.
- Analyzer: spectrum and waveform, bump test, raw data recorder, envelope analysis and more.
- Data collector: Route based data collector
example features
Vibration meter
Spectrum and waveform
Vibration meter
Measure vibration levels and Envelope peak value and speed at the same time. Display alarm status with color frames according to ISO 210816.
Diagnosis
Spectrum and waveform
Vibration meter
Display the key bands 1X, 2X, 3X and other band to help diagnosis the root cause of vibration problems.
Spectrum and waveform
Spectrum and waveform
Spectrum and waveform
Measure vibration time waveform and power spectrum for advanced vibration diagnosis (Analyzer model)
